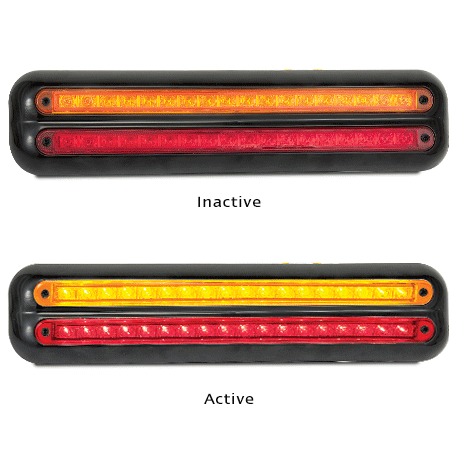

380 Double Bracket
Reference:
380 Double Bracket
Features / Specifications
|
Fitting InstructionsHorizontally mount onto a flat surface using the screws provided, and run wire through the hole in the fixing surface. Please refer to ADR 13/00 for mounting instructions. |
| Download Data Sheet |
Technical Drawings |
Please contact our Customer Service team for all sales enquiries.Phone: 1800 815 000 |
|
| Function | Stop/Tail/Indicator | ||
 |
|||
| Part No. | |||
| 380BAR12 | Blister | ||
| . | |||
| LED Qty | 36 | ||
| Cable | 40cm | ||
| Draw | Stop | Tail | Ind |
| @13.8V | 0.16A | 0.04A | 0.18A |
| Approvals | Function | Category | CRN |
| ADR | Stop/Tail | 49/00 | 39473 |
| ADR | Indicator | 6/00/2A | 39470 |
