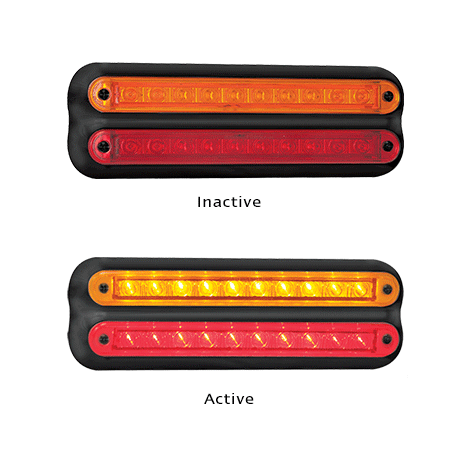

235 Double Bracket
Reference:
235 Double Bracket
Features / Specifications
|
Fitting InstructionsHorizontally mount onto a flat surface using the screws provided, and run wire through a hole in the fixing surface. Please refer to ADR 13/00 for mounting instructions. |
Technical Drawings
|
|
Please contact our Customer Service team for all sales enquiries.Phone: 1800 815 000 |
|
| Function | Stop/Tail/Indicator | ||
 |
|||
| Part No. | |||
| 235BAR12 | Blister, Coloured Lens | ||
| . | |||
| LED Qty | 20 | ||
| Cable | 40cm | ||
| Draw | Stop | Tail | Ind |
| @13.8V | 0.14A | 0.04A | 0.16A |
| Approvals | Function | Category | CRN |
| ADR | Stop/Tail | 49/00 | 37678 |
| ADR | Indicator | 6/00/2A | 39092 |
| CTA | 49/00, 6/002A | 060128 | |
