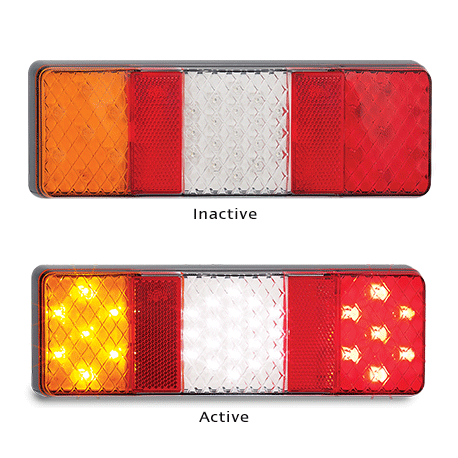

250 Series
Reference:
250 Series
Features / Specifications
|
Fitting InstructionsSurface mount (Horizontally or Vertically) using bolts in the back of the lamp, run wire and plug through a 10mm hole in the fixing surface. Please refer to ADR 13/00 for mounting instructions. |
Technical Drawings |
|
Please contact our Customer Service team for all sales enquiries.Phone: 1800 815 000 |
|
| Function | Stop/Tail/Indicator/Reverse | |||
 |
||||
| Part No. | ||||
| 250ARWM | 12-24 Volt, Blister | |||
| . | ||||
| LED Qty | 33 | |||
| Cable | 40cm | |||
| Draw | Stop | Tail | Ind | Rev |
| @13.8V | 0.04A | 0.32A | 0.32A | 0.24A |
| @28V | 0.17A | 0.03A | 0.17A | 0.13A |
| Approvals | Function | Approval No. | ||
| ECE | Stop/Tail | R1-S1-E9-02.6461 | ||
| ECE | Indicator | 2a-E9-01.6461 | ||
| ECE | Reverse | AR-E9-00.6461 | ||
| ECE | Reflector | 1a-E9-02.6461 | ||
| CTA | Stop/Tail/Ind/Rev/Ref | CTA-060163 | ||
