• 282 Series

282 Series

Reference: 282 Series

Features / Specifications

  • Modern Design Square Combination
  • ADR/ECE Approved
  • IP67 Rated
  • 12-24 Volt
  • 5 Year Warranty
  • 284mm x 100mm x 27mm

Fitting Instructions

Horizontally surface mount (Horizontally/Vertically for 282ARWM) using bolts in the back of the lamp, run wire and plug through a 10mm hole in the fixing surface. Please refer to ADR 13/00 for mounting instructions.
Download Data Sheet

Technical Drawings

Please contact our Customer Service team for all sales enquiries.

Phone: 1800 815 000
Email: [email protected]

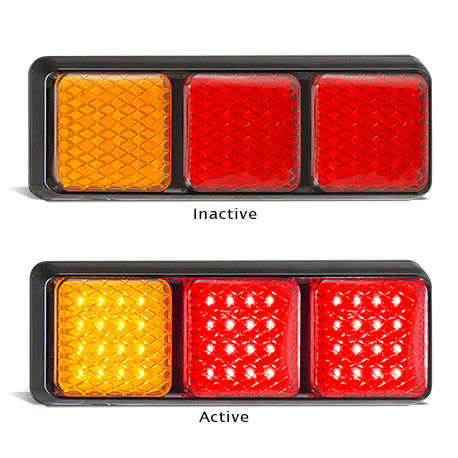

Function Stop/Tail/Indicator
Part No.
282ARRM 12-24 Volt, Blister
282ARRMB 12-24 Volt, Bulk
.
LED Qty 48
Cable 20cm
Draw Stop Tail Ind
@13.8V  0.33A  0.03A  0.24A
@28V 0.17A 0.03A 0.13A
Approvals Function Category CRN
ADR Stop/Tail 49/00 47008
ADR Indicator 6/00 2a 47015
CTA Stop/Tail/Indicator 49/00, 6/00 2a CTA-047015
.

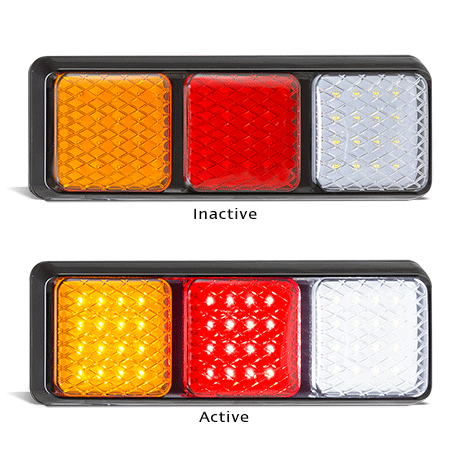

Function Stop/Tail/Indicator/Reverse
Part No.
282ARWM 12-24 Volt, Blister
282ARWMB 12-24 Volt, Bulk
.
LED Qty 48
Cable 20cm
Draw Stop Tail Ind Rev
@13.8V  0.33A  0.03A 0.30A  0.24A
@28V 0.17A 0.03A 0.17A 0.13A
Approvals Function Approval No.
ECE Stop/Tail R1-S1-E9-02.11736
ECE Indicator 2a-E9-01.11736
ECE Reverse AR-E9-00.11736
CTA Stop/Tail/Ind/Rev CTA-060094
