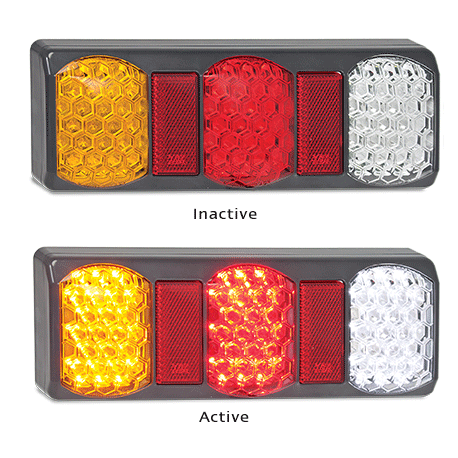

275 Triple Series
Reference:
275 Triple Series
Features / Specifications
|
Fitting InstructionsHorizontally mount onto flat surface using bolts in back of lamp, run wire and plug through 10mm hole in fixing surface. Please refer to ADR 13/00 for mounting instructions. |
| Download Data Sheet |
Technical Drawings |
Please contact our Customer Service team for all sales enquiries.Phone: 1800 815 000 |
|
| Function | Stop/Tail/Indicator/Reverse/Reflector | |||
 |
||||
| Part No. | ||||
| 275GARWM | 12-24 Volt, Blister | |||
| 275GARWMB | 12-24 Volt, Bulk | |||
| . | ||||
| LED Qty | 72 | |||
| Cable | 20cm | |||
| Draw | Stop | Tail | Ind | Rev |
| @13.8V | 0.23A | 0.04A | 0.22A | 0.16A |
| @28V | 0.12A | 0.04A | 0.12A | 0.09A |
| Approvals | Function | Category | CRN | |
| ADR | Stop/Tail | 49/00 | 43223 | |
| ADR | Indicator | 6/00 2a | 43221 | |
| ADR | Reverse | 1/00 | 43222 | |
| ADR | Reflector | 02 1A | 1472 | |
| CTA | Stop/Tail/Ind/Rev/Ref | 49/00, 6/00 2a, 1/00 | CTA-060144 | |
