80 Triple Series
Reference:
80 Triple Series
Features / Specifications
|
Fitting InstructionsHorizontally mount onto a flat surface with screws provided (for vertical mount, use P/N: 80B3V), run wires through the back and clip the lens into place. Please refer to ADR 13/00 |
Technical Drawings
|
|
Please contact our Customer Service team for all sales enquiries.Phone: 1800 815 000 |
|
| Function | Stop/Tail/Indicator | ||
 |
|||
| Part No. | |||

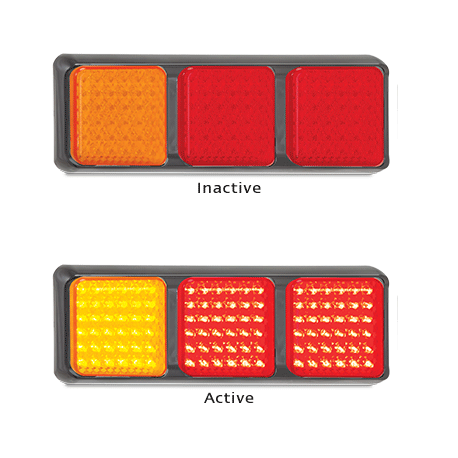

| 80BARR | 12 Volt, Blister | ||
| 80BARRM | 12-24 Volt, Blister | ||
| . | |||
| LED Qty | 108 | ||
| Cable | 40cm | ||
| Draw | Stop | Tail | Ind |
| @13.8V | 0.33A | 0.06A | 0.29A |
| @28V | 0.25A | 0.04A | 0.22A |
| Approvals | Function | Category | CRN |
| ADR | Stop/Tail | 49/00 | 33059 |
| ADR | Indicator | 6/00 2a | 33098 |
| CTA | Stop/Tail/Ind | 49/00, 6/00 2a | CTA-060070 |
| . | |||
| Function | Stop/Tail/Indicator/Reverse | |||
 |
||||
| Part No. | ||||

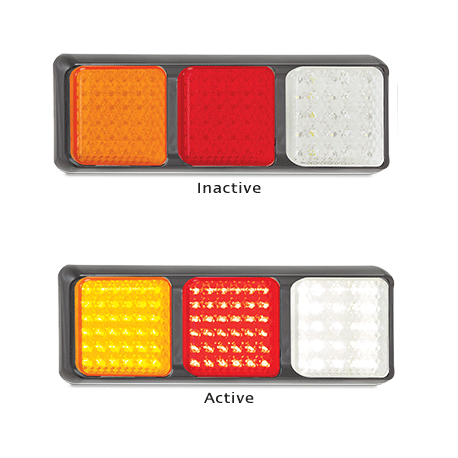

| 80BARW | 12 Volt, Blister | |||
| 80BARWM | 12-24 Volt, Blister | |||
| . | ||||
| LED Qty | 97 | |||
| Cable | 40cm | |||
| Draw | Stop | Tail | Ind | Rev |
| @13.8V | 0.33A | 0.06A | 0.29A | 0.31A |
| @28V | 0.24A | 0.07A | 0.23A | 0.17A |
| Approvals | Function | Category | CRN | |
| ADR | Stop/Tail | 49/00 | 33059 | |
| ADR | Indicator | 6/00/2A | 33098 | |
| ADR | Reverse | 1/00 | 35797 | |
| CTA | Stop/Tail/Ind/Rev | 49/00, 6/00 2a, 1/00 | CTA-060070 | |
