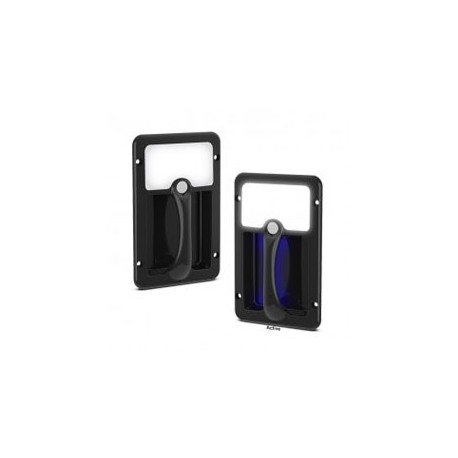

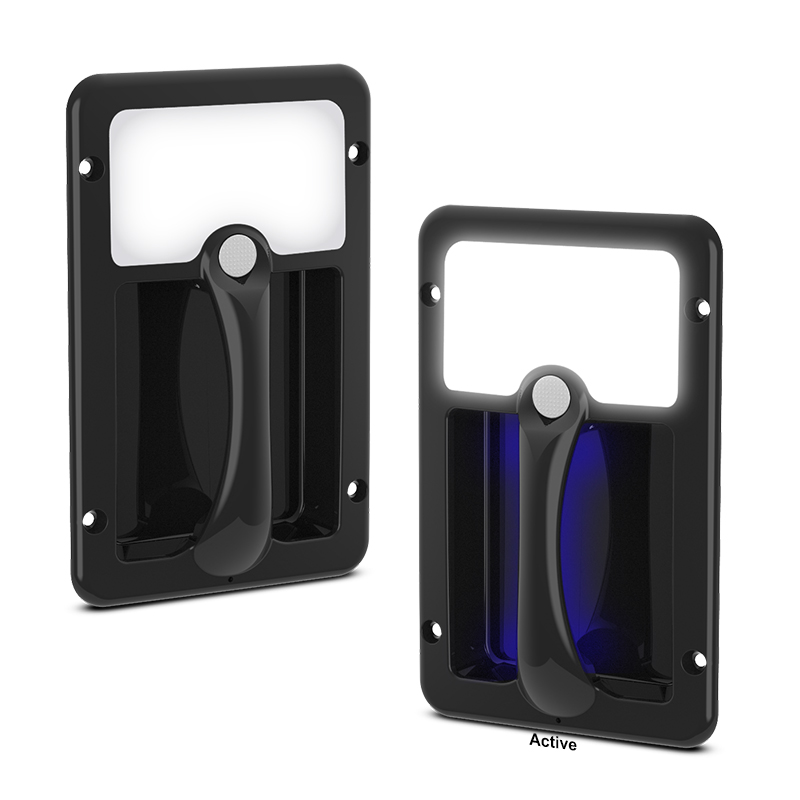

Grab Handle

Reference: Grab Handle

Features / Specifications

  • High Brightness Main Light
  • Blue Night-Light
  • Push Button with Door Control
  • IP65 Rated
  • 330 Lumens Main Light
  • 66 Lux @1m Main Light
  • 12 Volt
  • 2 Year Warranty

Fitting Instructions

Recess mount with screws supplied, cut out size 197mm x 116mm.

6000-7000k colour-temp Scale.jpg



Download Data Sheet

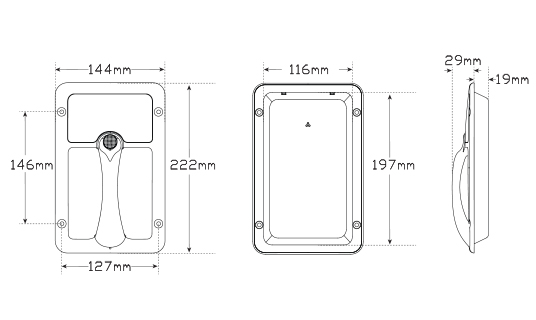

Technical Drawings

GH12B_Tech Draw.jpg

Please contact our Customer Service team for all sales enquiries.

Phone: 1800 815 000
Email: [email protected]
Function Grab-Handle Light
Part No.
GH12B 12 Volt, Single Box
.
Output 330 Effective Lumen
Colour Temp 6500K
LED Qty 18 Main/1 Blue
Cable 22cm
White/Blue
Draw @12V 0.30/0.03A
Draw @24V 0.17A/0.03A
Lens Polycarbonate
Cover Aluminium
Base Polycarbonate
Grab Handle
