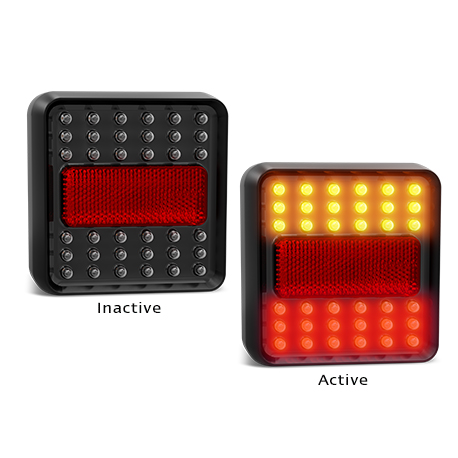

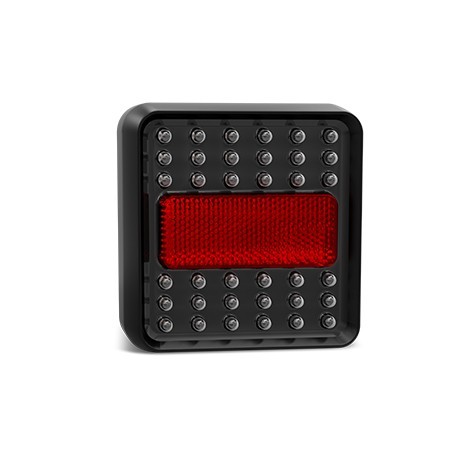

211 Series
Reference:
211 Series
Features / Specifications
|
Fitting InstructionsSurface mount onto flat surface horizontally with stainless steel bolts provided in assembly and run cable through 12mm hole. Please refer to ADR 13/00. |
Technical Drawings |
|
Please contact our Customer Service team for all sales enquiries.Phone: 1800 815 000 |
|
| Function | Stop/Tail/Ind/Reflector Lamp | |||
 |
||||
| Part No. | ||||
| 211BAR2 | Twin Blister | |||
| 211BAR | Single Bulk | |||
| . | ||||
| LED Qty | 36 | |||
| Cable | 40cm | |||
| . | ||||
| Draw | Stop | Tail | Indicator | |
| @13.8V | 0.10A | 0.01A | 0.11A | |
| . | ||||
| Approvals | Function | Approval No. | ||
| ECE | Stop/Tail | E9*148R00/03*1454*00 | ||
| ECE | Indicator | E9*148R00/03*1454*00 | ||
| ECE | Reverse | E9*148R00/03*1454*00 | ||
| ECE | Reflector | E9*150R00/03*1454*00 | ||
| CTA | Stop/Tail/Ind/Ref/Lic | 061105 | ||
