Reference: 150 Series

Features / Specifications

  • Premium Trailer Lamp
  • Diamond Pattern Lens
  • Low Profile
  • ADR Approved
  • IP67 Rated
  • Voltage Range 12V or 12-24V
  • Lifetime Warranty
  • 150mm x 80mm x 24mm

Fitting Instructions

Surface mount onto flat surface vertically with Indicator at the top using bolts in the back of the lamp, run wire and plug through 10mm hole in fixing surface. Please refer to ADR 13/00 for mounting instructions.
Download Data Sheet

SHOP NOW

Technical Drawings

Please contact our Customer Service team for all sales enquiries.

Phone: 1800 815 000
Email: [email protected]

Function Stop/Tail/Indicator & Reflector
Part No.

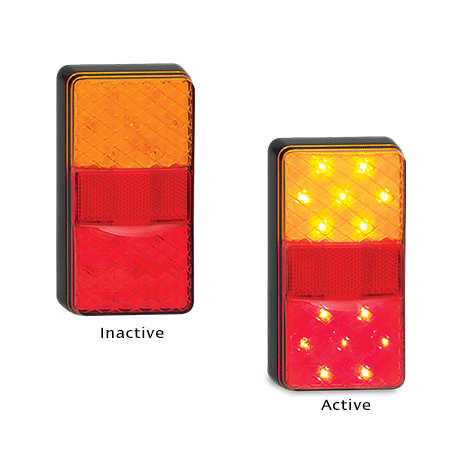

150BAR 12 Volt, Bulk Boxed
150BAR2 12 Volt, Twin Blister
150ARM 12-24 Volt Single Blister
.
LED Qty 14
Cable 30cm with Plug
Draw Stop Tail Ind
@13.8V  0.13A  0.04A  0.12A
@28V 0.12A 0.06A 0.07A
Approvals Function Category CRN
ADR Stop/Tail 49/00 37381
ADR Indicator 6/00 2a 37380
ADR Reflector 47/00 38102
CTA (BAR) Stop/Tail/Ind/Ref 49/00, 6/00 2a, 47/00 CTA-060113
CTA (ARM) Stop/Tail/Ind/Ref 49/00, 6/00 2a, 47/00 CTA-060294
Function Stop/Tail/Indicator & Reflector
Part No.

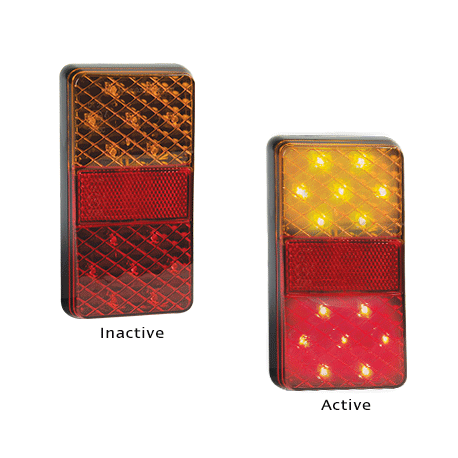

150BARB 12 Volt, Black PCB, Bulk Boxed
.
.
.
LED Qty 14
Cable 30cm with Plug
Draw Stop Tail Ind
@13.8V  0.13A  0.04A 0.12A
@28v 0.12A 0.06A 0.07A
Approvals Function Category CRN
ADR Stop/Tail 49/00 37381
ADR Indicator 6/00 2a 37380
ADR Reflector 47/00 38102
CTA (BAR) Stop/Tail/Ind/Ref 49/00, 6/00 2a, 47/00 CTA-060113
.
